   Safety Products gold bullet



Delineators




A-Frame Delineator

HSS Product #250-4
Highway Safety Specialists concrete reflectors

The concrete barrier delineator was designed to increase the visibility of both temporary and permanent concrete barriers. It is constructed of PVC with an added cold weather compound and a 10-year UV stabilizer. This product is extremely durable and has an extra long life expectancy. It can withstand the impact of snow and ice that is thrown from snowplows. We designed a product that had the durability to remain intact through the entire winter in northern climates.

The reflector has 10 sq. inches of reflective sheeting. It can be ordered with tape on either one side or on both sides. The product is adhered to the concrete surfaces using Titebond Weather Master Adhesive.

Read more...




Easy View Marker

HSS Product #270-1
Highway Safety Specialists concrete reflectors

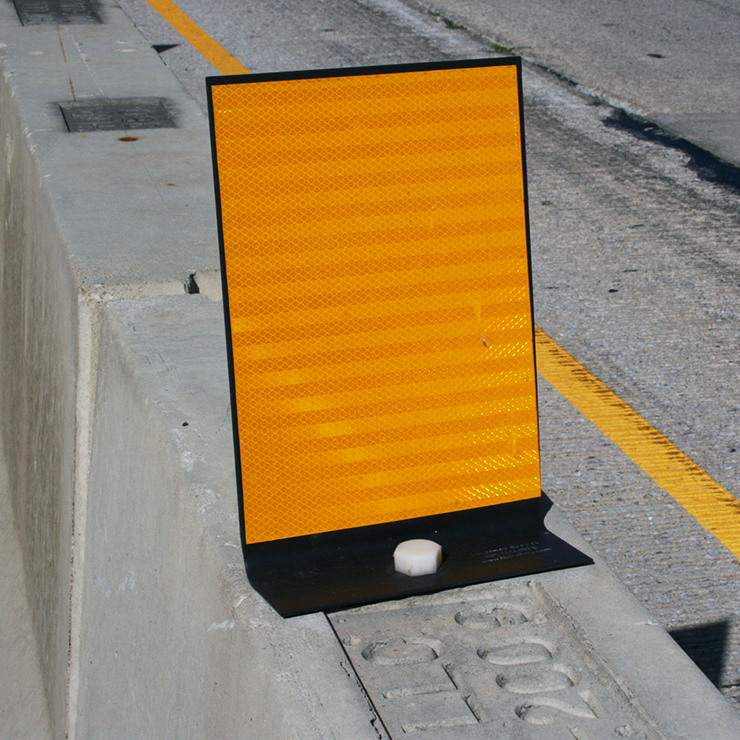

The Easy View Marker is anchored to the top of temporary concrete barriers used to separate traffic in construction zones.

This product is unique because it is one piece construction for greater durability and easy reuse, and requires less labor to assemble.

The unit shown is 8" wide x 12" high, however these can be manufactured in any size. Sheeting can be one or two sides and unless specified differently are Type IV.

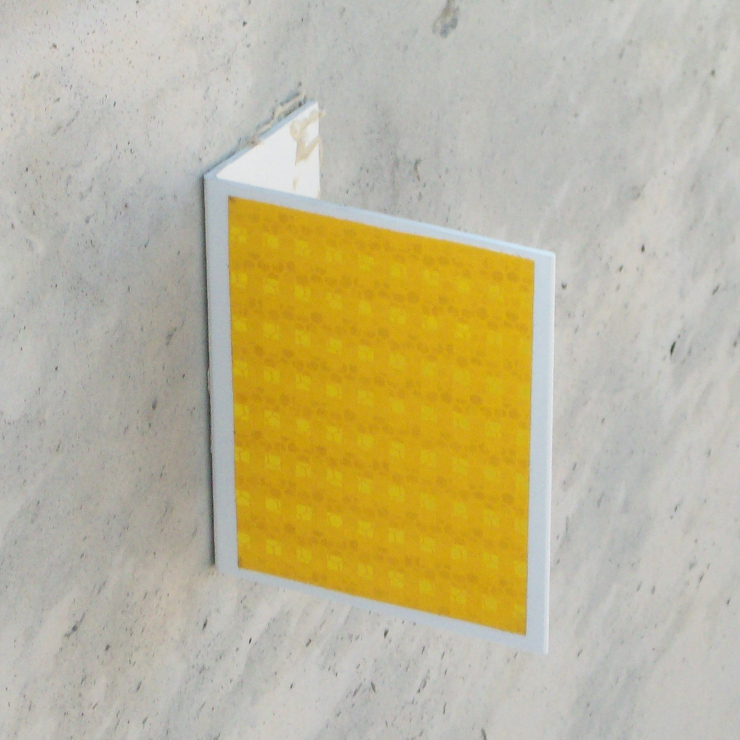

L-Frame Concrete Delineator

HSS Product #260-2
Highway Safety Specialists concrete reflectors

The HSS L-Frame concrete barrier delineator was purposely designed to:

•  Increase the visibility of temporary and permanent concrete barriers
•  Be used as either a top or side mounted unit
•  Increase durability of the actual delineator
•  Increase adhesion to the concrete
•  Reduce cost over other delineator offerings

SPECIAL FEATURES:
•  15.75 square inches of reflective sheeting
•  Standard sheeting is Type IV unless specified differently
•  Available with sheeting on one or both sides
•  Extremely durable PVC material with excellent impact resistance characteristics
•  Large contact surface with the concrete to increase adhesion
• Added cold weather additive to prevent delineator from becoming brittle in northern climates
•  10 Year UV stabilizer added
•  Installation is a matter of seconds
• The PVC formulation for this product has been tested against ASTM D792, D2240, D638, D790, D256, D696, D648, D1784, D4218 and D4226
• Cost Savings - Inexpensive compared to other delineators on the market The L-Frame Delineator is so popular that HSS maintains a large stock of inventory ready for immediate shipping. Give us a call to answer questions or get a quote.

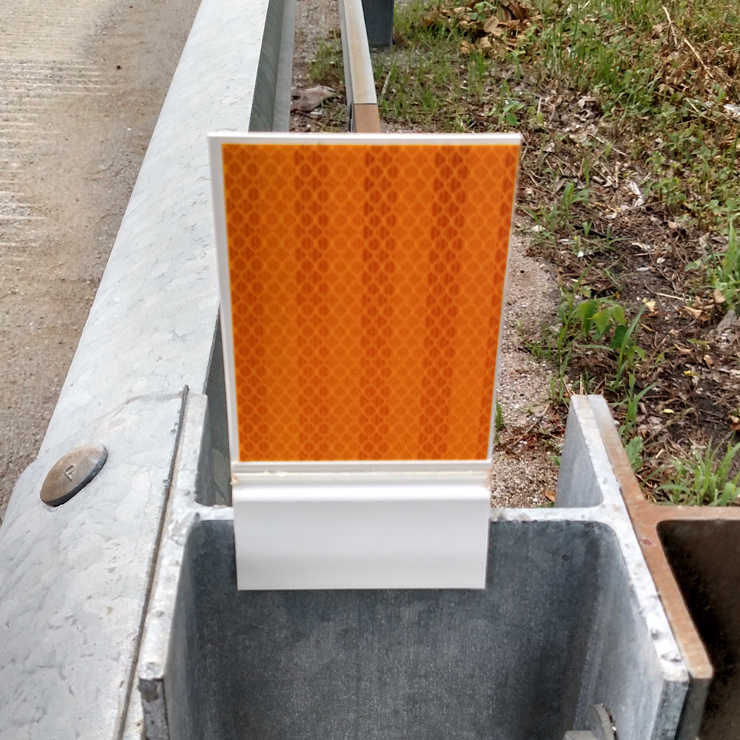

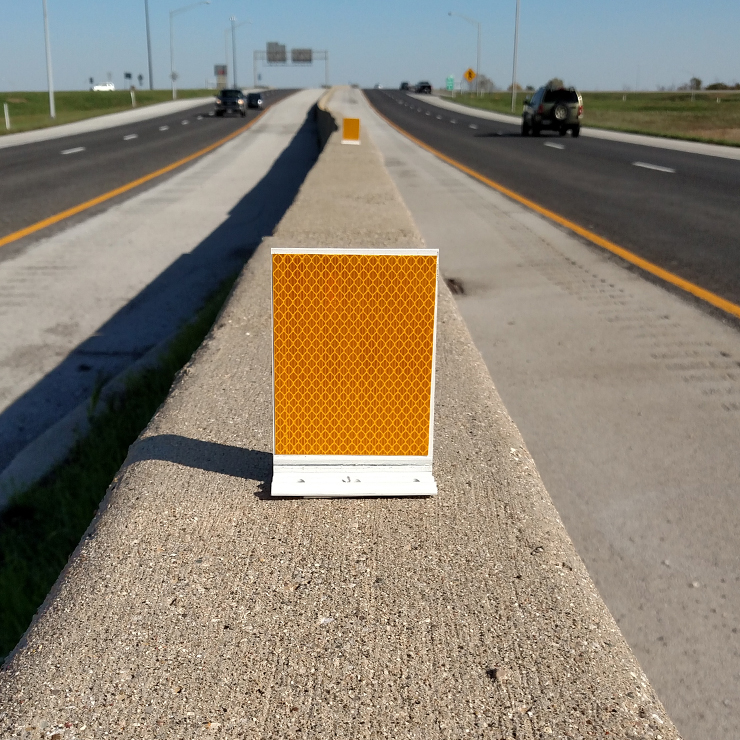

Flex-O-Matic Delineator

HSS Product #260-2
Highway Safety Specialists concrete reflectors

The Flex-O-Matic delineator has an Estane flexible hinge that allows the reflector to flex from side to side upon impact. The unit will spring back to the upright position if struck by an object. The Estane hinge allows the marker to rebound indefinitely. This ensures the delineator will stay in position even after an object strike. This eliminates the need to continually replace delineators especially incold climates where snow and ice from snow plows can easily damage them.

The Flex-O-Matic “X” flex hinge creates a mechanical bond between the hinge and the base of the delineator. The Estane “X” hinge remains flexible even in cold conditions. The result is a long lasting, impact resistant delineator.

SPECIAL FEATURES:
The delineator is manufactured using indestructible PVC
which has a cold weather additive along with a 10 year
UV stabilizer
•  Built with the flexible Estane “X” hinge to provide years
of longevity
•  Base of unit is pre-drilled and is scalloped to increase
adhesion to the concrete
•  Holes in the base can also be used to ramset the
delineator to the concrete
•  Available in 2 standard sizes (longer versions
manufactured for both delineators)
•  Sheeting is applied per state specifications
(Type IV standard unless specified otherwise)
•  Both versions have 12 square inches of reflective material
•  Sheeting on one or both sides
•  Inventory is kept in stock for quick deliveries
•  Product is manufactured in the USA.




Tall Reflector Angle Delineator

HSS Product #XXX-X

HSS tall reflector angle delineator
The concrete barrier reflector was designed to increase the visibility of both temporary and permanent concrete barriers. It is constructed of PVC with an added cold weather compound and a 10-year UV stabilizer. This product is extremely durable and has an extra long life expectancy. It can withstand the impact of snow and ice that is thrown from snowplows. We designed a product that had the durability to remain intact through the entire winter in northern climates. Read more...




Guardrail
Highway Safety Specialists guardrail delineators

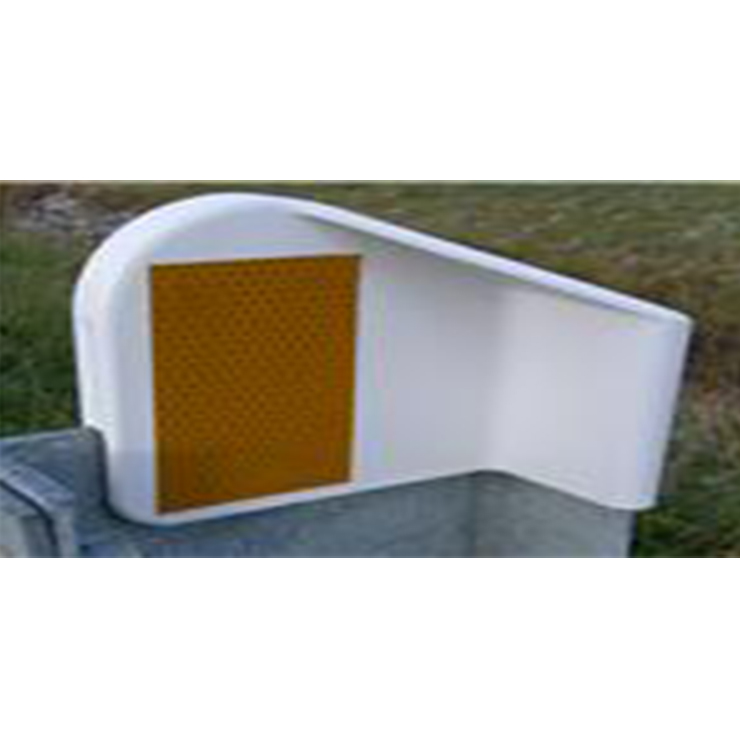

The I-Beam Reflector/Protector is a patented product that offers both reflection and protection. This piece is specially molded to slide down over the rear flange of low impact beams that support the guardrail system. This piece provies the protection of the sharp edges should a pedestrian accidentally fall on the beam.

HSS Guardrail DelineatorThe Guardrail Delineator was designed to increase the visibility of guardrails. It is constructed of PVC with an added cold weather compound and a 10-year UV stabilizer. This product is extremely durable and has an extra long life expectancy. It can withstand the impact of snow and ice that is thrown from snow plows. We designed a product that has the durability to remain intact through the entire winter in northern climates. Read more...





Guardrail Delineator
Highway Safety Specialists guardrail delineators

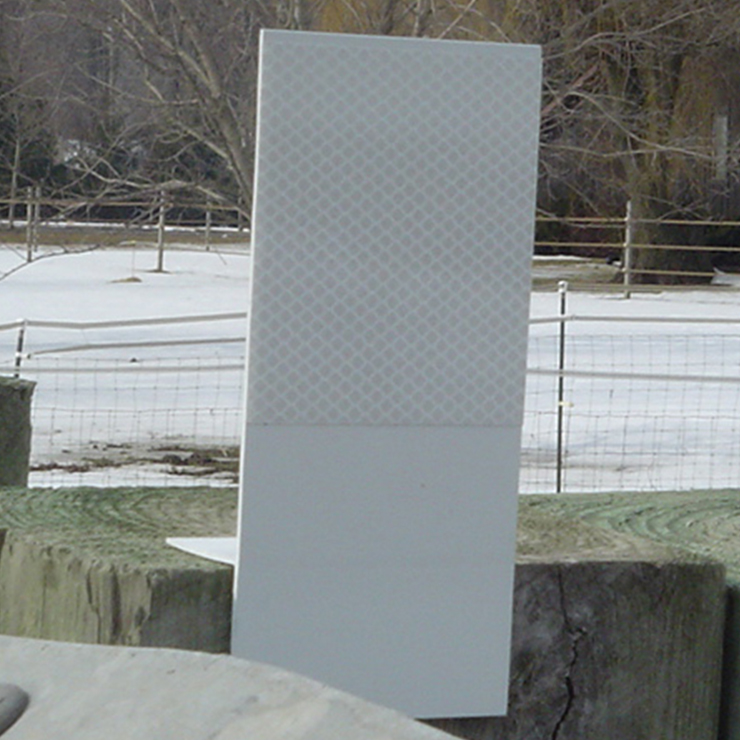

HSS Product #250-5 (W) Wood Blocking installation

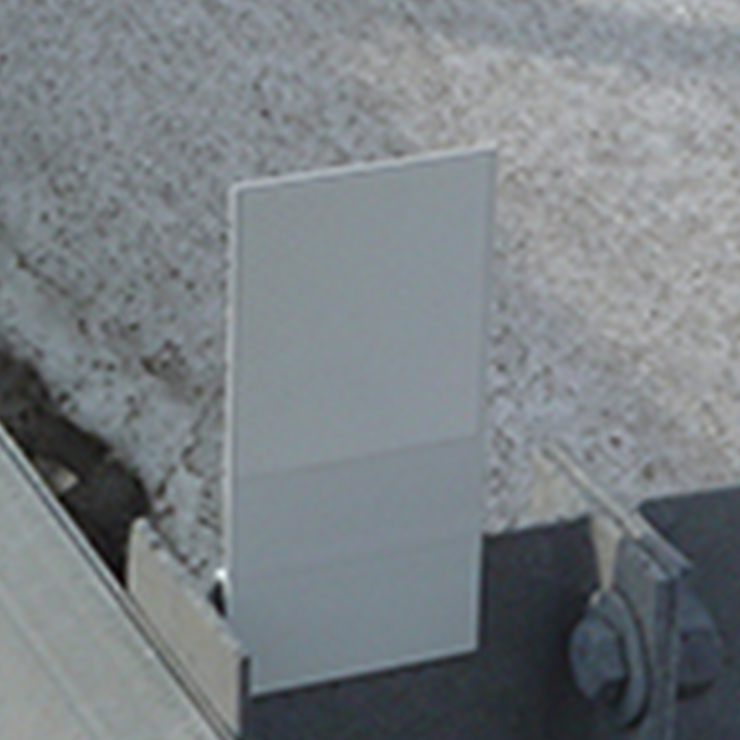

HSS Product #250-5 (I) I-Beam installation

The HSS Guardrail delineators were purposely designed to:
•  Increase visibility guardrail systems
•  Increase durability of the actual delineator
•  Reduce time of installation
•  Reduce cost over other guardrail offerings

Highway Safety Specialists guardrail delineatorsSPECIAL FEATURES:
•  16 square inches of reflective sheeting
•  Standard sheeting is 3M High Intensity Prismatic – Any manufacture, color or grade of sheeting can be applied
•  Extremely durable PVC material with excellent impact resistance characteristics (material is flexible and will not dislodge when hit with snow that is thrown from plows in northern climates)
•  Wood blocking version comes with two holes and is quickly installed using two roofing nails
•  I-Beam version has flange that slides over web of I-Beam
•  Added cold weather additive to prevent delineator from becoming brittle in northern climates
•  10 Year UV stabilizer added
•  The PVC formulation for this product has been tested against ASTM D792, D2240, D638, D790, D256, D696, D648, D1784, D4218 and D4226
•  Cost Savings - Inexpensive compared to other delineators on the market HSS maintains inventory ready for immediate shipping. Give us a call to answer questions or get a quote.

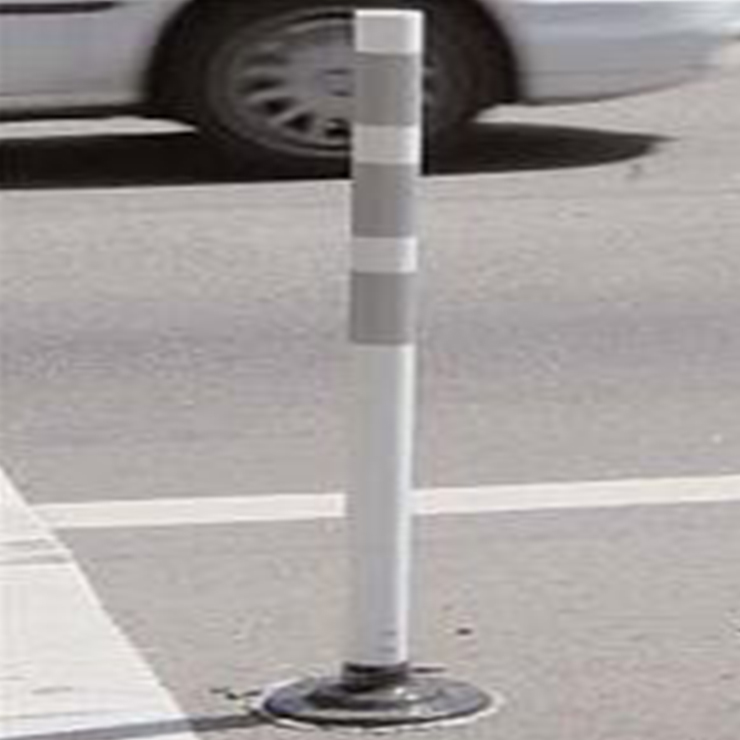

Fixed Mount Surface

Highway Safety Specialists fixed mount surface
Polymer base WILL NOT crack or split. The most reboundable delineator in the traffic market today.

Manufactured from specially formulated plastic compound, utilizing polymer protection and UV stabilizers. Three times the elasticity of conventional rubber bases. Perfect for parking lots, islands, and work zones. Read more...

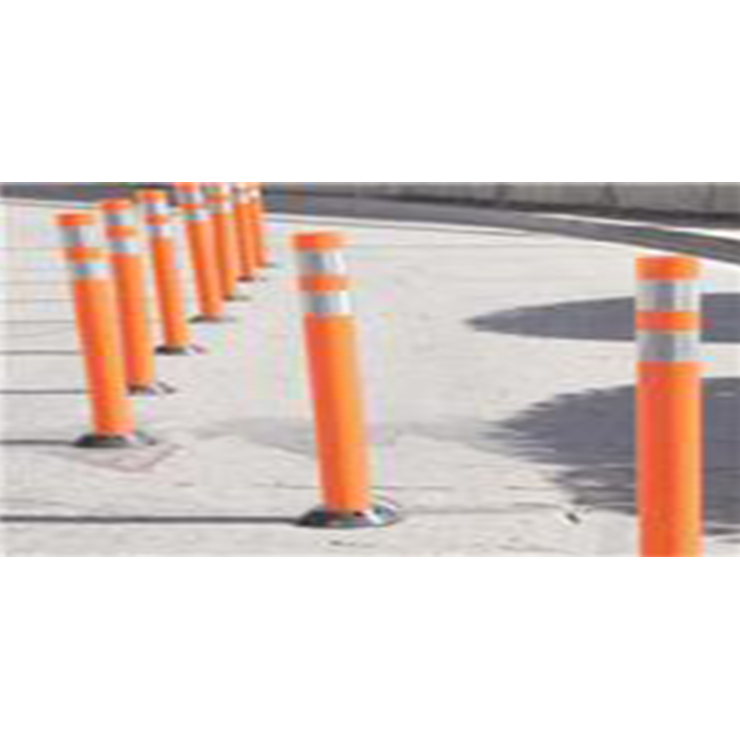

Ground Mount
Highway Safety Specialists guardrail delineators

Perfect for parking lots, islands and work zones. Base is made from ABS plastic. Unique pry bar slot on bottom of bases eases removal of base when job is finished or for quick replacement. Manufactured from a specially formulated plastic compound, utilizing polymer protection and UV stabilizer.

HSS Guardrail Delineator

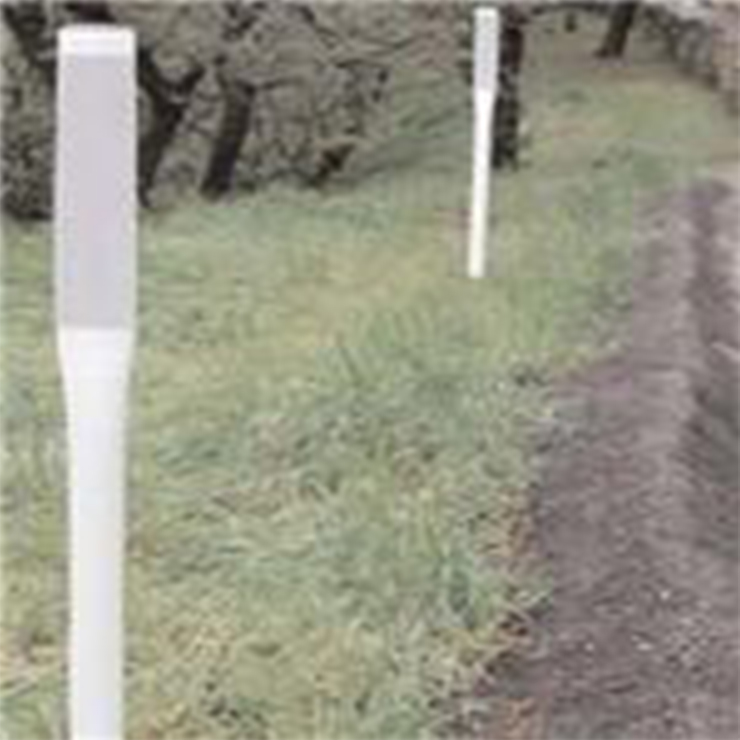

The EarthflexTM flexible hinge allows the delineator to absorb repeated high speed impacts. Unique WeathergardTM formula is combined with our recycled polymers to give the TD 5500 the ability to withstand the extremes of hot or cold weather, superior strength and consistently rugged performance in any traffic condition. Read more...
